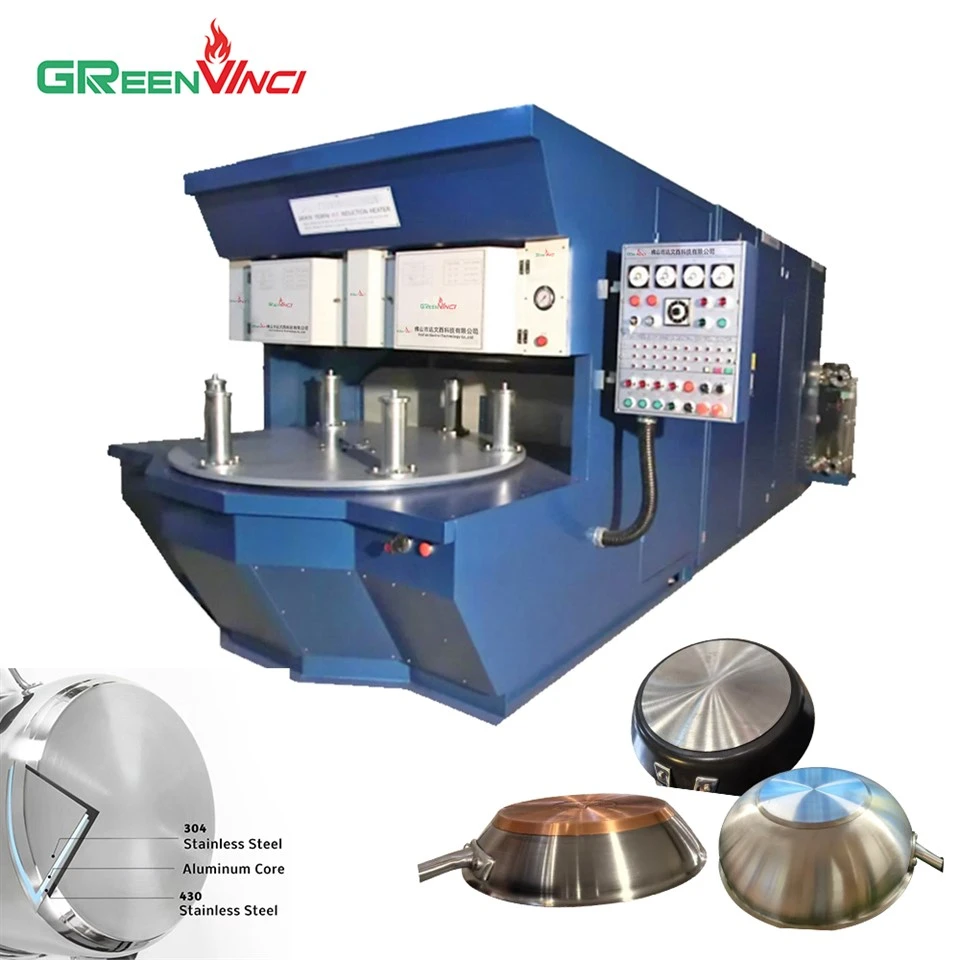

Igwe ọkụ Sanwichi Bottom Brazing Machine

Igwe ọkụ Sanwichi Bottom Brazing Machine

Nke a bụ maka adhesion nke casserole nke okpukpu atọ site na iji mgbagha pịa welder ma na-ekpo ọkụ ọkụ, nke na-enye ọnọdụ okpomọkụ kachasị mma na ngwa ngwa na mgbe niile.

Ihe ngosi teknụzụ isi

Isi akụrụngwa nke akụrụngwa

Ngalaba ịma jijiji:

1. Dual oscillation usoro

2. Internal ventilashion na akpaka okpomọkụ akara (na-edobere na 30-40 degrees)

3. Oke mmepụta: 0-60 kW, 300 kHz

4. Oscillator circuit ịgbanwee ngwaọrụ

Ngalaba njikwa ike

1. SCR njikwa ọkụ ọkụ na-enyere aka ịchịkwa ọnọdụ okpomọkụ

2. Digital overcurrent nchedo usoro na agụụ tubes

3. PLC{1}arụ ọrụ dabere na-enye ohere ịhọrọ sistemụ njikwa kacha dabara adaba maka onye ọrụ

4. CCM PCB ọrụ na-enye visibiliti n'ime igwe ọnọdụ

Ngalaba ngbanwe: Boost na AC-DC rectifier chọrọ maka nkeji oscillation

Voltaji ntinye 1st: 0-380 ACV

Voltaji ntinye nke abụọ: 0-10,000 ACV

Voltaji ngbanwe nke mbụ: 10,000 ACV

Voltage rectifier nke abụọ: 10,000 DCV

Distilled mmiri jụrụ usoro

1. N'ime mgbasa ozi nke mmiri distilled maka jụrụ oyi

2. Usoro ahụ na-ewepụ corrosion na ọkpọkọ mmiri jụrụ oyi

Nrụgide arụ ọrụ: 4-6 n'arọ/cm² Ọnụ ọsọ: 120 I/min

3. Onye na-agbanwe ọkụ: Ọnụego mgbasa ozi dị n'ime 12 m³ / h, ọnụego mgbasa ozi mpụga 30 m³ / h

4. A na-eji temometa tụọ okpomọkụ mmiri, nrụgide, na olu iji rụọ ọrụ nchebe

Ụkpụrụ Ọrụ Isi

Ugbu a, igwe na-eji Sanwichi ala brazing mejupụtara bụ isi na-eji teknụzụ ndị a: Elu{0}Frequency Induction Brazing

Usoro: A na-edobe ahụ ite na ala mejupụtara (nke nwere mgbanaka brazing na flux tupu etinyere n'etiti ha) n'ime ngwa ngwa. Akụrụngwa ahụ na-ebute oke mgbanwe dị elu{2}, nke, site na eriri induction, na-emepụta mmiri mmiri siri ike n'ime ite ala, na-ekpo ọkụ ngwa ngwa ite na ala mejupụtara (n'ime sekọnd ole na ole ruo iri nke sekọnd).

Igwe ọkụ: A na-emepụta ọkụ ozugbo site n'ime igwe, na-eme ka ọ dị oke mma.

Gburugburu Ebe obibi: A na-eme ya n'ikuku, a na-eji flux (paste solder) gbochie oxidation ma kwalite ịgba ọsọ brazing.

Atụmatụ: kpo oku ngwa ngwa na nrụpụta nrụpụta dị elu, mana ọ chọrọ udi workpiece dị elu na dakọtara eriri igwe.

Nkọwa dị nkenke nke Usoro Brazing

Loading -> Workpiece Positioning -> High-Frequency Induction Heating -> Brazing Melts and Fills the Welding Seam -> Cooling and Solidification ->Na-ebupụ

Biko rụba ama:Mgbe ị na-eji nke aSanwichi ala brazing igwe, hụ na a zụrụ ndị ọrụ tupu ha eweghara ọkwa ha ka ha ghara imerụ onwe ha ahụ site na ịrụ ọrụ na-ekwesịghị ekwesị nke akụrụngwa.
